40-60% Rh
Semiconductor
Humidity control is a direct yield and reliability lever in semiconductor fabs.
Overview
Semiconductor fabs typically maintain 40-60% RH to protect yield, reduce electrostatic discharge (ESD), and keep cleanroom processes stable. Humidity directly affects lithography, etch/deposition, packaging reliability, and contamination control, making it a critical production variable rather than a facility preference.
Humidity
Why Humidity Control Matters in
Semiconductor Manufacturing
Preventing Static Electricity (ESD)
- Low humidity increases electrostatic charge buildup
- Even 30–100 V can destroy ultra sensitive components like MOSFETs
- Maintaining RH above ~40% dramatically reduces ESD risk
Avoiding Condensation & Corrosion
- High humidity (>60% RH) can cause: Condensation on wafers and tools, Corrosion of metal layers, Process instability
- Cleanrooms therefore avoid high moisture to protect delicate surfaces.

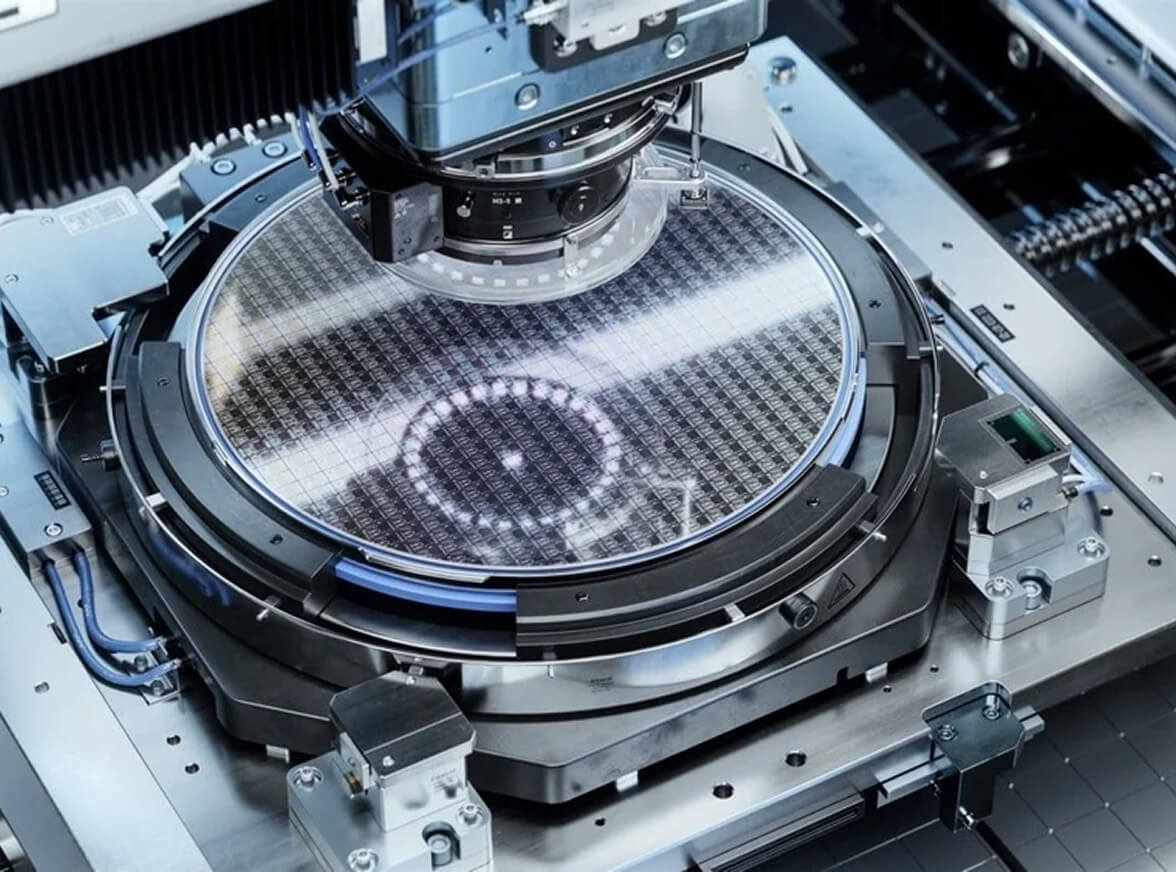

Ensuring Photolithography Accuracy
- Photoresists are highly sensitive to moisture
- Humidity fluctuations cause: Pattern distortion, Chemical imbalance, Film adhesion issues
- Stable humidity is essential for consistent critical dimensions (CD)
Maintaining Process Stability in Etching & Deposition
- Moisture affects: Plasma etch rates, Thinfilm uniformity, Adhesion
- Even small moisture variations can alter film thickness
Preventing Packaging Defects
- High RH can cause: “Popcorning” during reflow, CAF (conductive anodic filament) growth, Outgassing
- Low RH can cause solder voids and delamination.
Humidity

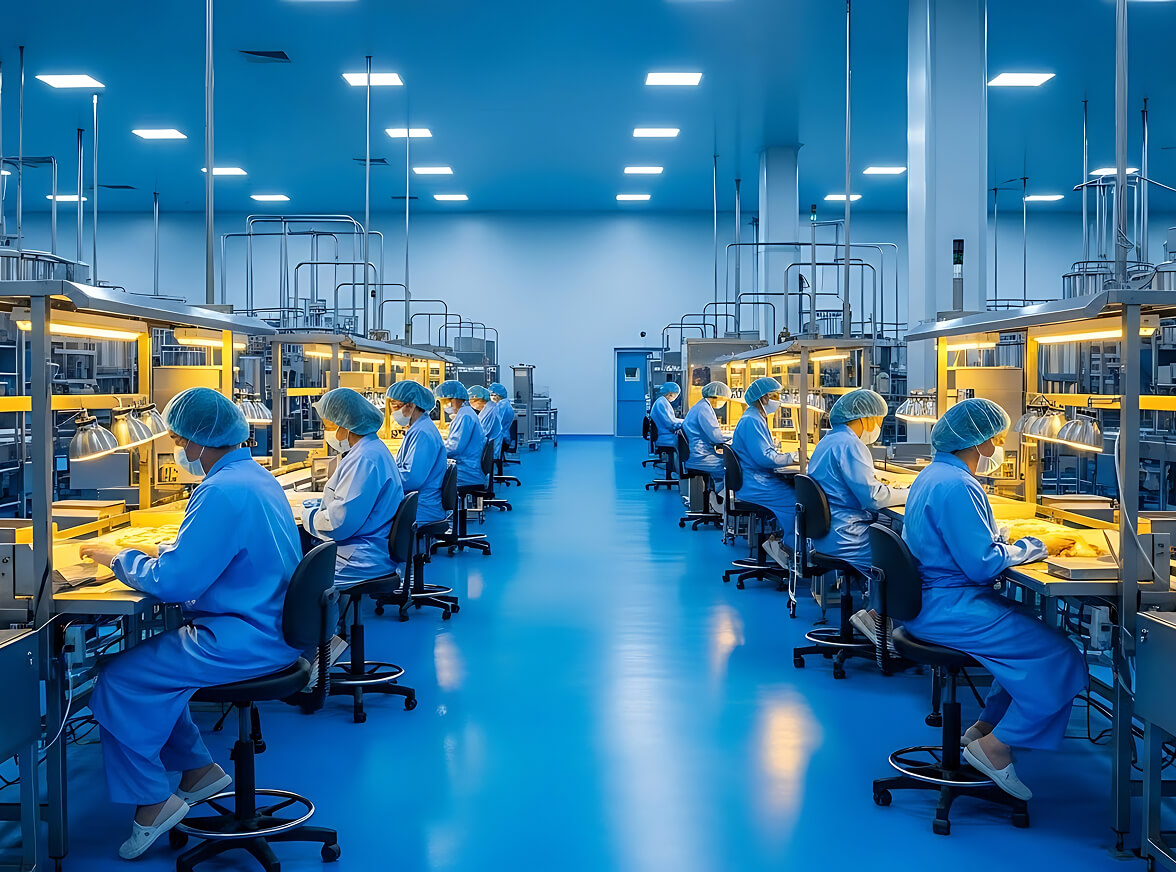

Typical Humidity Standards in
Semiconductor Cleanrooms
| Process AREA | Typical RH Range | Reason |
|---|---|---|
|
Photolithography |
40–50% |
Resist chemistry stability |
|
Etch/Deposition |
35–45% |
Prevent moistureinduced defects |
|
Assembly/Packaging |
40–60% |
ESD control + solder reliability |
|
General Cleanroom |
40–50% |
Balanced control for all processes |
Humidity
Why Humidity Control Is
Becoming Even More Critical
Shrinking nodes (5 nm → 2 nm) increase sensitivity.
EUV lithography requires extremely stable environmental conditions.
Advanced packaging (3D ICs, chiplets) is moisturesensitive
