40-50% Rh
Electronics
Tight humidity control reduces latent failures and supports long-term electronics reliability.
Humidity
Why Humidity Control Is Critical in
Electronics Manufacturing
ESD (Electrostatic Discharge) Prevention
- Low humidity (<40% RH) increases static charge buildup.
- Sensitive components can be damaged by discharges as low as 30 V
- ESD damage often remains latent and appears only after deployment → warranty failures

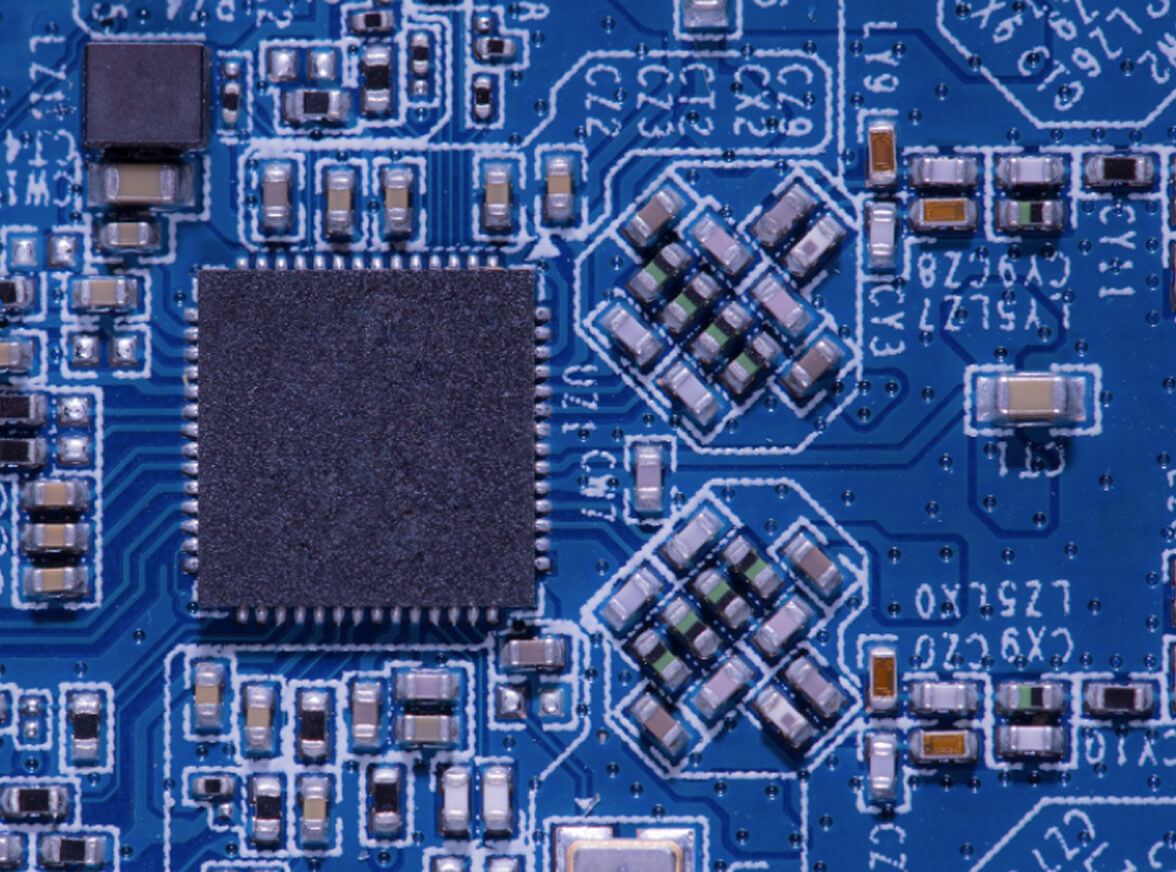

MoistureSensitive Device (MSD) Protection
- ICs, BGAs, and finepitch components absorb moisture from the air.
- During reflow, absorbed moisture expands → Popcorning, Delamination, Microcracks in solder joints, Corrosion under coatings
- These failures may not be immediate but reduce longterm reliability.

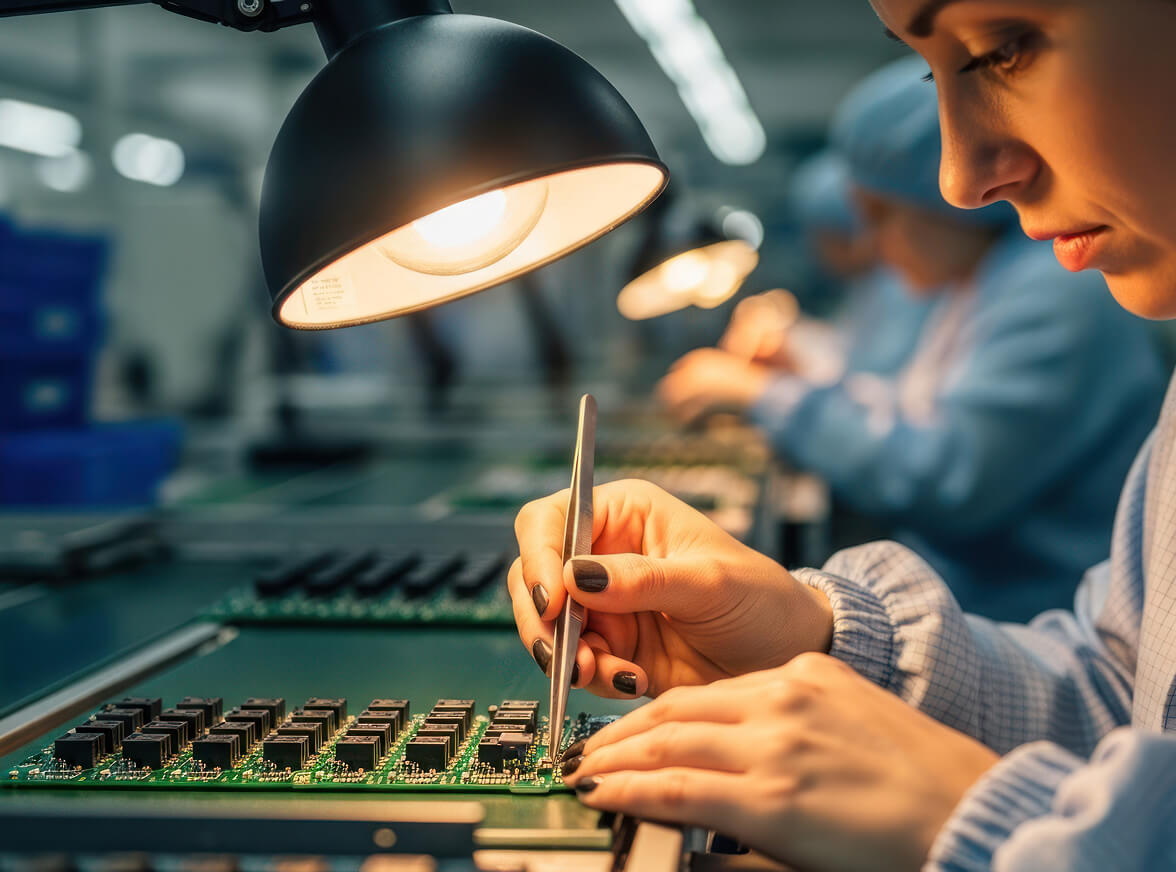

Soldering & Assembly Quality
- Low RH → solder voids, poor wetting, flux imbalance
- High RH → CAF (Conductive Anodic Filament) growth, outgassing, oxidation.
Material Stability & Warping
- PCBs, plastics, and adhesives are hygroscopic.
- RH fluctuations cause dimensional changes → misalignment, warpage, and assembly defects.
LongTerm Field Reliability
- Even small humidity variations during production can shorten device lifespan.
- Improper storage or exposure before reflow weakens components.
Humidity
Typical RH requirements by zone
| Area / Process | Required RH | Reason |
|---|---|---|
|
PCB Assembly |
40–60% |
ESD control + soldering stability |
|

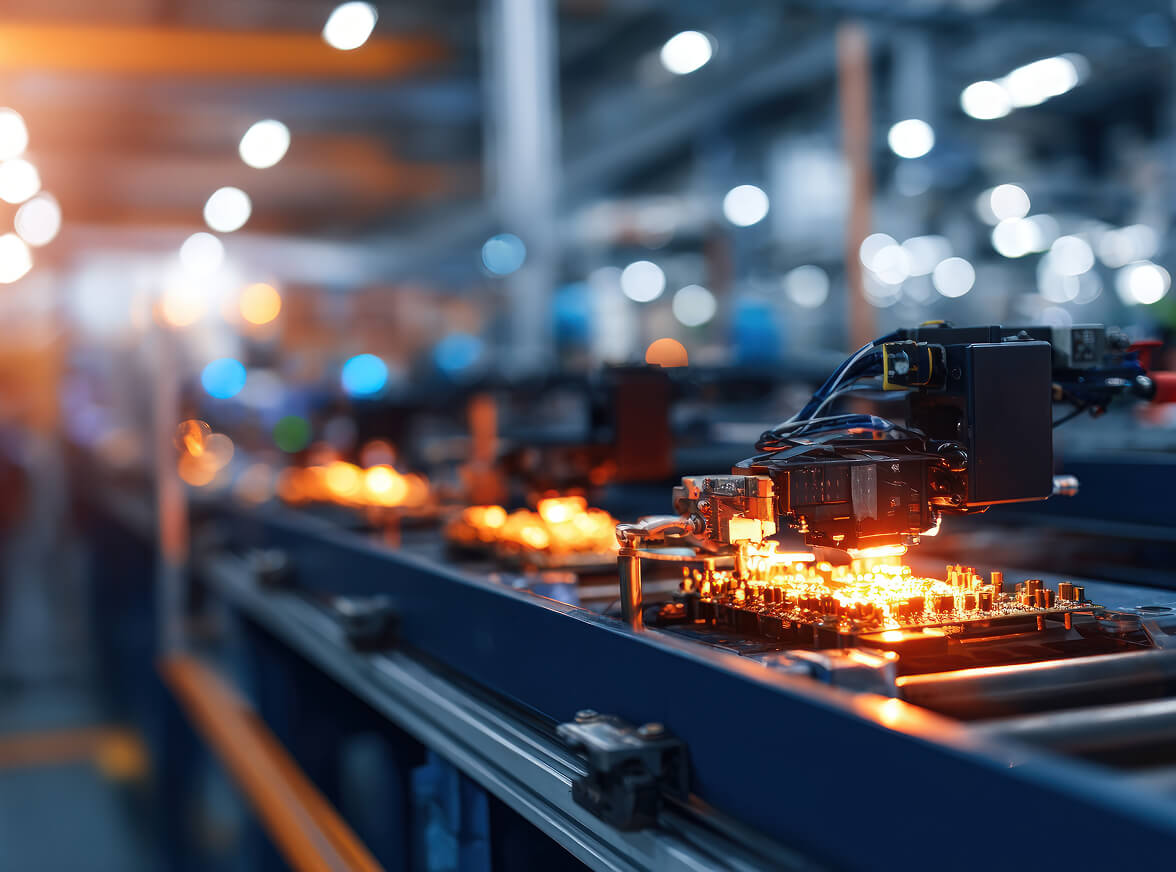

SMT Lines |
45–55% |
MSD protection |
|
Cleanrooms |
40–50% |
Balanced ESD + contamination control |
|
Testing & Packaging |
40–60% |
Avoid latent defects |
Humidity
Key Design Considerations for Electronics Humidification
Precision Control
- RH must stay within ±2–3% for critical zones.
- Sensors must be placed at multiple points to avoid “dry pockets” Control
Energy Efficiency
- Electronics manufacturing is energyintensive.
- Adiabatic systems reduce both humidification and cooling loads.
Integration with AHUs / Cleanrooms
- Compatible with HEPA filtration and laminar airflow systems.
- Reduces condensation and RH fluctuations.
Compliance & Sustainability
- ESG and decarbonization targets push for lowenergy humidification solutions.
